SELF-CENTERING PLANERS

SCP-18 | SCP-24 | SCP-32

GET THE SCP EDGE

OSI Machinerie’s Self-Centering Planers (SCP), make optimal use of every single board, regardless of the type of defects (cupped, twisted, cambered, splitted), significantly increasing yield. The 3 models ensure 100% thickness accuracy of all work pieces.
It removes the same thickness on both material surfaces. The independent suspension guarantees optimal calibration to allow simultaneous and accurate planing. This patented concept eliminates jamming and profit-gouging downtimes.

SCPs can be used for a variety of different manufacturing applications:

  • Hardwood flooring
  • Hardwood lumber
  • Furniture
  • Doors and windows
  • Components
  • Cabinets
  • Dimension

FEATURES

High yield savings
Vertical facing opposing heads
Self-centering segmented feed rolls and pressure fingers
Minimize hit and miss
Reach the largest possible surface area
Guarantee thickness accuracy of +/- 0.003’’ (0.076 mm)
Eliminate burn marks and digging
Batch feeding despite board thickness differences
Digital thickness readouts
Spiral cutter heads with replaceable cutting inserts
Hydro-lock collars on each 3’’ (76mm) posts (4)
Cutter heads braking module

Options

Air conditioning
Ampere speed level control
Cabinet sound insulation
Predictive maintenance package
Cutting head cart

Applications

Best pre-scanner planers
Unique planers post-ripsaw
Pre-dry kiln planing improves uniformity

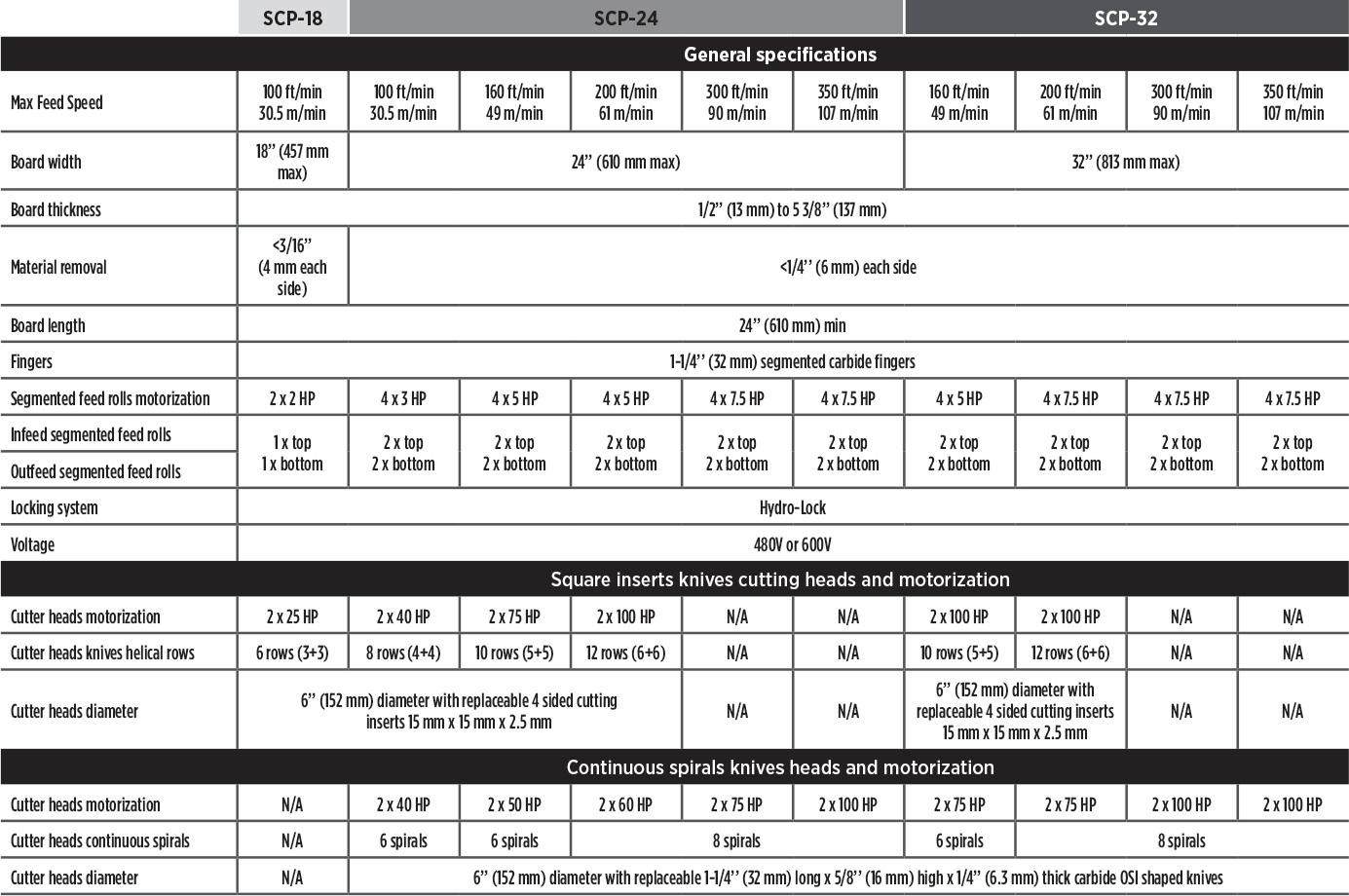

TECHNICAL SPECIFICATIONS

SCP32_tableau_en
self-centering-planers-august2020

DOWNLOAD
OUR BROCHURE >
